SBMA Straight Stainless Steel Right Angle Pin RF Coaxial Connector
The SBMA series is a compact version of the BMA series coaxial connectors and also functions as blind-mate connectors. They offer the benefits of high bandwidth and small size, meeting the needs for microwave device miniaturization and modularity.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics |
| Impedance | 50 Ohm |
| Frequency Range | DC~40GHz |
| Rated Voltage | 170 VRMS (Maximum sea-level) |
| Dielectrics Voltage-resistance | 500 VRMS (Maximum sea-level) |
| Insulation Resistance | ≥2000MOhm |
| Contact Resistance | Outer conductor | <=2mOhm |
| Center conductor | <=6 mOhm |
| VSMR | ≤1.25 |
| Insertion Loss | ≤0.30dB |

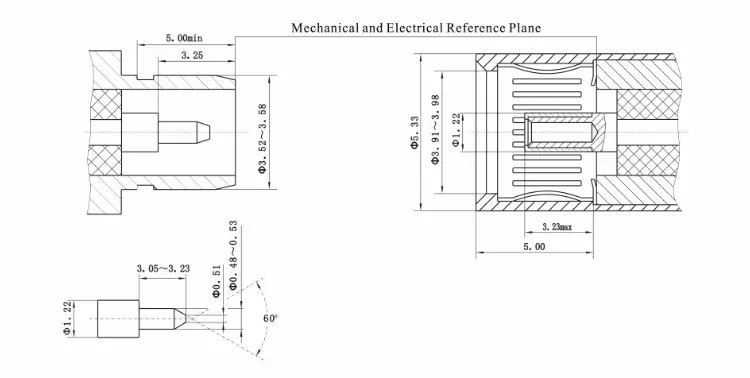

Product Detail
| Material & Mechanical Characteristics |
| Center Conductor | Male/Plug | Brass | Gold plated |
| Female/Socket | Sn-P bronze | Gold plated |
| Resilience Contact | Beryllium bronze | Nickel Plated |
| Shell / Housing | Brass,stainless steel | Nickel Plated |
| Insulators | PTFE |
| Sealing Ring | Silicone Rubber |
| Durability | 500 cycles |
| RoHS Compliant | Yes |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Mating Force | 0.6N max |
| Un-Coupling Force | 0.6 N max |
Environmental Specification:
| Operating Temperature | -65 to +165Deg C |
| IP Rating ( Mated ) | IP64 |
Features:
1. Reliable connection: blind plug structural design, no need for complex alignment operations when connecting, just insert the plug into the socket to complete the connection, simple and convenient operation, and the connection is firm and reliable, can withstand a certain degree of vibration and shock.
2. Long mechanical life: the general mechanical life of SBMA connectors can reach more than 500 times, and some products are even higher, which can meet the requirements of long-term frequent plugging and unplugging.
3. High degree of standardization: SBMA series RF coaxial connectors follow the relevant international standards and national standards for production and testing, to ensure that the connectors produced by different manufacturers have good compatibility and interchangeability.
Application:
1. RF test equipment: In the test and measurement process of RF signals, it is necessary to use high-precision connectors to connect the test instrument and the device under test.SBMA connectors have good electrical performance and mechanical stability, which can meet the requirements of RF test equipment for signal transmission accuracy and stability, and they are widely used in vector network analyzers, spectrum analyzers and other RF test instruments.
2. General electronic measurement instruments: In addition to RF test equipment, other general electronic measurement instruments, such as oscilloscopes, signal generators, etc., may also use SBMA connectors to connect external signal sources or circuits under test to realize signal input and output.
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
