High Frequency 4 Hole Square Flange Mount TNC to SMA Female / Jack RF Coaxial Adapter with Insulation Resistance of 5000Ohm

Brand Name : ELT

Model Number : TNC/SMA-KFK-4

Certification : Rohs，ISO Certificates

Place of Origin : Xi'an, China

MOQ : In Stock

Price : Depending on the quantity

Payment Terms : T/T or LC

Supply Ability : As requirements

Delivery Time : 5-7 working days for stocked quantity

Packaging Details : 1pcs/plastic bag;10bags/carton

Product Name : TNC Female to SMA Female Adapter

Center Contact : Copper Alloy， Gold Plated

Shell : Copper Alloy， Nicle Plated

Mount Method : Flange Mount

Imdepence : 50 Ohm

Rated Voltage : 500V

DWV : 1000V

Insulation Resistance : 5000Ohm

Frequency : DC~11GHz

Insulation Dielectric : PTFE

Temperature Range : -55℃~+125℃

Samples : Available，In Stock

Contact Now

Product Description:

The TNC to SMA adapter is designed to connect TNC connectors with SMA connectors. This adapter is widely used in scenarios where devices with TNC interfaces need to be connected to devices with SMA interfaces. It is commonly utilized in fields such as wireless communication, test equipment, and RF instruments, where conversion between different interfaces is frequently required. Elite Electronic have the TNC to SMA adapters with the flange mount,bulkhead mount..., also we have some waterproof Models.

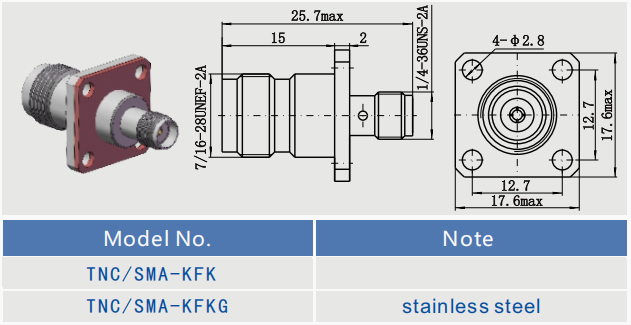

Outline Dimension of TNC to SMA Jack to Jack 4 Hole Square Flange Mount Adapters TNC/SMA-KFK: High Frequency 4 Hole Square Flange Mount TNC to SMA Female / Jack RF Coaxial Adapter with Insulation Resistance of 5000Ohm

Outline Dimension of TNC to SMA Female to Female 4 Hole Square Flange Mount Adapters TNC/SMA-KFK1:

High Frequency 4 Hole Square Flange Mount TNC to SMA Female / Jack RF Coaxial Adapter with Insulation Resistance of 5000Ohm

Outline Dimension of TNC to SMA Female to Female 4 Hole Square Flange Mount Adapters TNC/SMA-KFK1:
High Frequency 4 Hole Square Flange Mount TNC to SMA Female / Jack RF Coaxial Adapter with Insulation Resistance of 5000Ohm
Outline Dimension of TNC Jack to SMA Jack 4 Hole Square Flange Mount Adapters TNC/SMA-KFK:

Applications:

TNC adapters is widely used in the fields of aviation,aerospace, radar, microwave communication and digital communication.
High Frequency 4 Hole Square Flange Mount TNC to SMA Female / Jack RF Coaxial Adapter with Insulation Resistance of 5000Ohm

Packing and Shipping:

Packaging:
The TNC female to SMA female is carefully packaged in a carton to ensure safe transportation. The connector is secured in place with protective foam padding to prevent any damage during shipping. The box is labeled with the product name and specifications for easy identification.
High Frequency 4 Hole Square Flange Mount TNC to SMA Female / Jack RF Coaxial Adapter with Insulation Resistance of 5000Ohm

Shipping:
We offer fast and reliable shipping for the TNC Jack to SMA Jack adapters. We will ship the stocked connectors within 5-7 business days. After shipping, you will receive a tracking number of your shipment.
