PTFE Insulator SMP Female 2 Hole Flange Mount Cable Connector Mating Cable 0.047

Xi'an Elite Electronic Industry Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

PTFE Insulator SMP Female 2 Hole Flange Mount Cable Connector Mating Cable 0.047

Brand Name : ELT

Model Number : SMP-KFB1 Series

Place of Origin : Xi'an, China

Certification : Rohs,ISO Certificates

MOQ : 50,we can discuss if in stock

Price : Depending on the quantity

Packaging Details : 1pcs/plastic bag;10bags/carton

Delivery Time : 5-7 working days for stocked quantity

Payment Terms : T/T or LC

Supply Ability : As requirements

Product Name : SMP Female Cable Connector

Frequency Range : DC To 18 GHz

Imdepence : 50 Ohm

Voltage Rating : 500 Vrms

Insulation Resistance : 5000 Ohm

Housting : Copper Alloy

Center Contact : Gold Plating

Mating Cable : Cable 0.047

Temperature Range : -55℃~+125℃

Samples : Available, In Stock

Contact Now

Product Description:

SMP series connectors, blind-mate RF coaxial connectors, provide an ideal solution for modular dense installation applications. With their small size and wide frequency band usage, they can operate within the range of DC~40GHz. Consequently, they are widely used in dense assembly, matrix antennas, satellites, radar, communications and other applications.



The SMP-KFB1 Series RF Connector is a high-quality connector designed for a variety of applications, offering reliable performance and durability. This connector is specifically designed for use with Cable 0.047. Typically, we appriciate to supply the finished connector with cable.

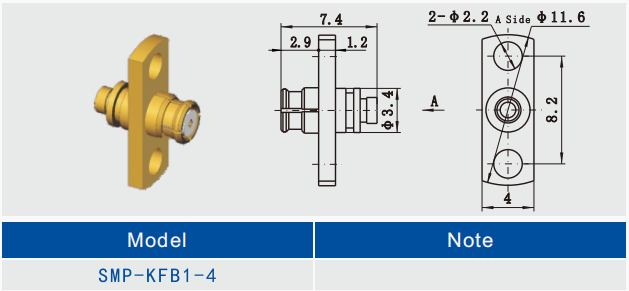

Straight SMP Female 2 Hole Flange Mount Cable Connector Mating Cable 0.047

PTFE Insulator SMP Female 2 Hole Flange Mount Cable Connector Mating Cable 0.047

Straight SMP Female 2 Hole Flange Mount Cable Connector Mating Cable 0.047

PTFE Insulator SMP Female 2 Hole Flange Mount Cable Connector Mating Cable 0.047

Straight SMP Female 2 Hole Flange Mount Cable Connector Mating Cable 0.047

PTFE Insulator SMP Female 2 Hole Flange Mount Cable Connector Mating Cable 0.047

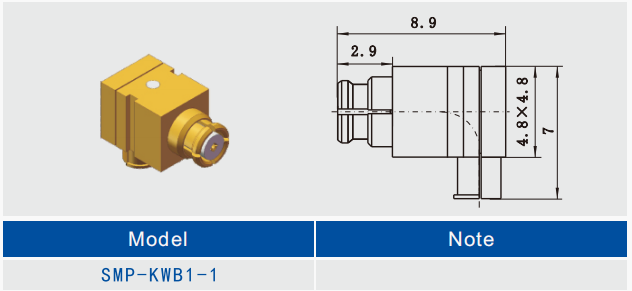

Elite Electronic also have the Right Angle SMP Female connector for Cable .047



Right Angle SMP Female Cable Connector Mating Cable 0.047

PTFE Insulator SMP Female 2 Hole Flange Mount Cable Connector Mating Cable 0.047

Right Angle SMP Female Cable Connector Mating Cable 0.047

PTFE Insulator SMP Female 2 Hole Flange Mount Cable Connector Mating Cable 0.047

Right Angle SMP Female 2 Hole Flange Mount Cable Connector Mating Cable 0.047

PTFE Insulator SMP Female 2 Hole Flange Mount Cable Connector Mating Cable 0.047



Note:Please conact us directly through sales3@xa-elite.com.cn if you need more details.

Applications:

The ELT SMP-KFB1 Series SMP Cable Connector for semi-rigid and semi-flex is a versatile and high-quality RF connector designed for a wide range of applications. With its reliable performance and durability, this connector is suitable for various scenarios where a reliable RF connection is crucial.



Product Application:

  • Telecommunications: The SMP Connector for Cable 0.047 is ideal for telecommunications equipment, ensuring a stable and efficient connection for high-frequency signals.
  • Test and Measurement: The 40 GHz SMP Connector is perfect for test and measurement applications, providing accurate and consistent results in signal testing.
  • Wireless Communication: Whether used in antennas, base stations, or other wireless communication devices, the SMP Male Connector ensures a secure connection for uninterrupted data transmission.
  • Industrial Automation: The SMP-KFB1 Series connector is also well-suited for industrial automation systems, offering a reliable RF connection for various machinery and equipment.

PTFE Insulator SMP Female 2 Hole Flange Mount Cable Connector Mating Cable 0.047

Packing & Shipping:



Product Packaging:

- Each SMP RF connector is carefully packaged in a protective plastic case to prevent damage during transit.

- The packaging is designed to keep the connector safe and secure until it reaches its destination.

PTFE Insulator SMP Female 2 Hole Flange Mount Cable Connector Mating Cable 0.047



Shipping Information:

- Orders are processed and shipped within 5-7 business days for stocked goods.

- We offer standard and expedited shipping options to ensure timely delivery of your SMP RF connector.

- Express Tracking No. will be provided once your order has been shipped.
