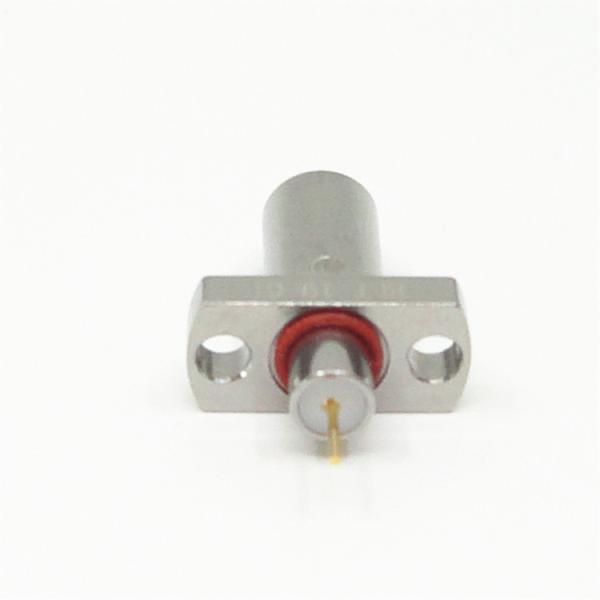

China Supplier Flange Shoulder SBMA Plug and Socket Straight RF Coaxial Connector
SBMA series is a miniaturized product of the BMA series coaxial connectors, it's also blind-mate connectors, with the advantages of good bandwidth, small occupy space, can meet the requirements of microwave device miniaturization and modularization
Specification
| Electrical Characteristics |
| Impedance | 50 Ohm |
| Frequency Range | DC~40GHz |
| Rated Voltage | 170 VRMS (Maximum sea-level) |
| Dielectrics Voltage-resistance | 500 VRMS (Maximum sea-level) |
| Insulation Resistance | ≥2000MOhm |
| Contact Resistance | Outer conductor | <=2mOhm |
| Center conductor | <=6 mOhm |
| VSMR | ≤1.25 |
| Insertion Loss | ≤0.30dB |
Product Detail
| Material & Mechanical Characteristics |
| Center Conductor | Male/Plug | Brass | Gold plated |
| Female/Socket | Sn-P bronze | Gold plated |
| Resilience Contact | Beryllium bronze | Nickel Plated |
| Shell / Housing | Brass,stainless steel | Nickel Plated |
| Insulators | PTFE |
| Sealing Ring | Silicone Rubber |
| Durability | 500 cycles |
| RoHS Compliant | Yes |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Mating Force | 0.6N max |
| Un-Coupling Force | 0.6 N max |
Environmental Specification:
| Operating Temperature | -65 to +165Deg C |
| IP Rating ( Mated ) | IP64 |
Features:
- Low cost combined with high quality.
- Broadband performance with low reflection from DC to 18 GHz.
- 50 Ohm impedance
- Accommodates a wide range of miniature RG flexible semi-rigid coaxial cables
- BNC connectors are available in straight or right angle versions, as well as, bulkhead, 2 hole panel, 4 hole panel or mountless options.
- Available for affixement to industry standard cable and as a printed circuit board device
- Provide repeatable performance
Application:
* Broadband
* Instrumentation
* Antennas
* Telecom
* Computers
* Broadcast
* Video systems
* Automotive
* Mil/Aero
* Telecommunications
* Wireless industries
* Measurement equipment
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
Product Tags:
|
|
Straight Flange Mount RF Coaxial Connector SBMA Plug Straight Images
|
