1W DC-18 GHz SSMA-Male RF Load Termination Low PIM Power

  • 1
  • 2

Brand Name : ELT

Model Number : SSMA-50JR1-1W

Certification : CE ROHS

Place of Origin : Shaanxi, China

MOQ : 100

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000000 Pieces Per Month

Delivery Time : Within 3 weeks

Packaging Details : Standard Export Carton

Impedence : 50 Ohm

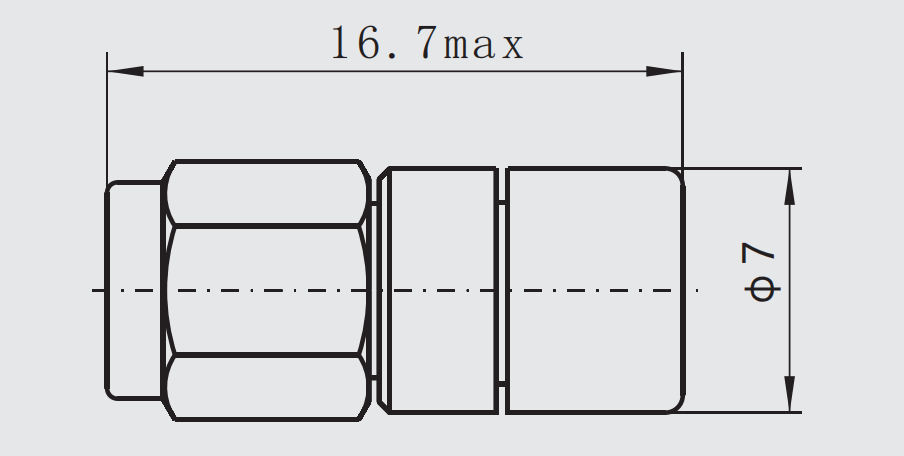

Length : 16.7mm Max

Diameter : φ7

Frequency Range : DC-18GHz

Housing : Brass , gold-plated

Note : Cylindrical Resistor

Contact Now

1W DC-18 GHz SSMA-Male Termination Low VSWR Power RF Dummy Load



Terminations, or loads, offered by Xi‘an Elite Electronic are matched to 50 ohms characteristic impedance. Matched loads provide a termination designed to absorb all the incident power with very little reflection, effectively terminating the line or port in its characteristic impedance. Terminations are used in a wide variety of measurement systems; any port of a multi-port microwave device that is not involved in the measurement should be terminated in its characteristic impedance in order to ensure an accurate measurement. Terminations are also used in devices such as directional couplers and isolators.



The low-power matched RF load designed and produced byElite Electronic has an impedance of 50Ω, including male and female interface of SMA, SSMA, SMP, SSMP, CSMP, N, TNC, K2.92mm, etc., which can meet the different needs of users.




Model No. SSMA-JR-10W
Power  10W
Frequency Range  DC-18GHz
VSWR  ≤1.3
Note  Cylindrical Resistor



1W DC-18 GHz SSMA-Male RF Load Termination Low PIM Power



Details of 1W DC-18 GHz SSMA-Male Termination Low PIM RF Power Load




Advantage :



* High Reliable


* Good Mechanical Performance


* Wide Frequency Range from DC to 18GHz





Applications :



  • General Purpose Test
  • Communication
  • Precision Test and Measurement

◆   Wide Frequency Band



◆   2G/3G/4G/LTE Coverage



◆   Low VSWR



◆   Widely used for In-building Solutions





Key Features:

Polarity                Standard

Interface              SSMA (Male)

Impedance           50Ω

Body Shape         Straight

50 ohms nominal impedance is standard

Performance Features:

Frequency Range:           DC~18GHz

VSWR                              DC~18GHz: ≤1.2

Average Power ≤2W

Durability                          500 Cycles

Operating Temperature    -55℃~+125℃





Shipping Service:



The shipment will be delivered via major global expresses, such as DHL, UPS, FedEx etc. Currently, it will be sent out from Xi'an, China.


Product Tags:

SSMA Male RF Load



Low PIM Power RF Load Termination



DC-18GHz RF Dummy Load
